Onshore & Nearshore Loading
Safe, Efficient, and Cost-Effective Alternatives to Conventional Marine Loading Arms
Leveraging years of established expertise in the creation, development, and provision of loading and unloading platforms, SafeRack’s DockReel system stands as one of the most secure, cost-efficient, and high-performing marine loading solutions available today. The DockReel barge and ship access equipment, inclusive of cutting-edge marine gangways, alternative loading arms, and loading platforms, are meticulously crafted to enhance productivity, bolster operator safety, and extend the product’s lifespan.
With a rich history in the marine sector, SafeRack’s DockReel barge and ship access tools are engineered with a focus on operator safety and efficiency. Our team of competent Design and Project Engineers possess a wealth of knowledge in designing and delivering fluid transfer systems, along with the related electrical, mechanical, and hydraulic equipment.
If you’re in the market for an alternative to traditional marine loading arms that offers reduced operational costs, superior safety measures, and enhanced flexibility, then SafeRack’s DockReel system should be on your consideration list. With the added advantage of local support and readily available spare parts, the DockReel marine loading arm solution is committed to ensuring safe and efficient loading and unloading for you and your clientele.
A New and Efficient Marine Loading Arm Alternative
Gone are the days of inefficient, heavy, and maintenance-prone marine loading arms. Welcome to the new world where flexibility, lower operating expenses, and advanced safety features are at your fingertips. Couple that with local support, available spare parts, and the world’s leaders in loading and unloading technologies, and you’ve got a solution that will serve you and your customers long into the future.

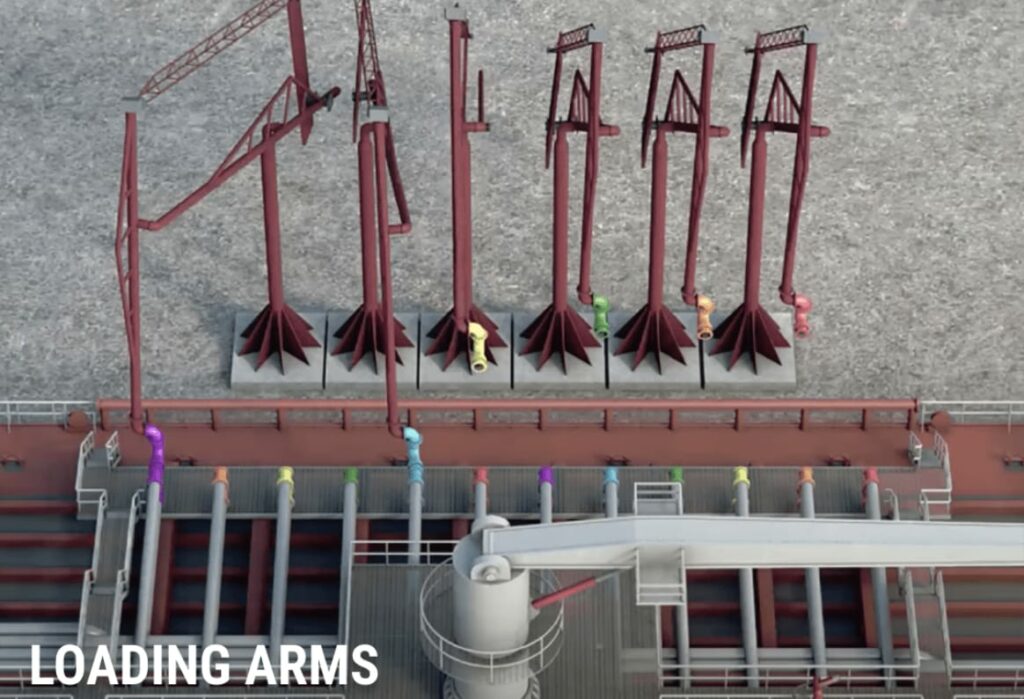

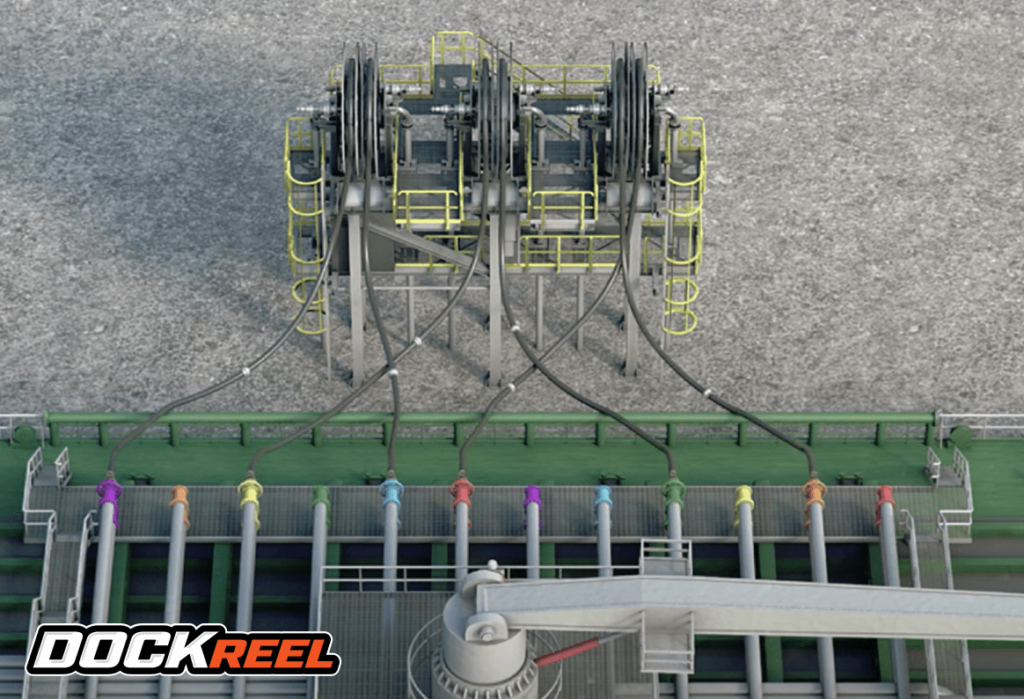

DockReel’s advantages over marine loading arms
In collaboration with Techflow Marine, SafeRack’s DockReel system equips operators with the ability to securely and effectively transport their products from tankers and barges with utmost precision. Remarkably, the DockReel system is 60% lighter than standard marine loading arms, offering significant space efficiency.
Employing the DockReel system guarantees reduced loading times and minimized demurrage, thanks to its state-of-the-art technology that meets the most stringent safety standards globally.
DockReel’s Benefits Over Marine Loading Arms
DockReel offers significant improvements over conventional port and terminal marine loading arms and fluid transfer systems. It offers solutions to complex application and operational requirements, including options for reduced footprint and loading times, lightweight systems, flexible offshore hose reel designs, and simultaneous product loading.
- Significantly decreased operating envelope
- Reduced height and footprint
- 70% reduction in weight
- 25% savings in upfront costs
- 75% savings in operational costs
- Reduced transfer time
- Reduced demurrage
- Reduced Co2 emissions
- Accommodates future growth and expansion

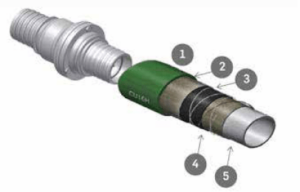

Reinforced Hoses
Suitable for working with 98% of existing chemical products.
- Exterior coating – EPDM rubber
- Synthetic textile reinforcement
- Steel wire spiral
- Anti-static copper wire
- Transparent UHMWPE liner
Breakaway Couplings: The Weak Link, The Key to Safety
Breakaway couplings that reduce the risk of spills.
Near-Shore Tanker (un-loading):
Breakaway Couplings – Weak Link, The Key to Safety
Breakaway couplings that reduce the risk of spills.
Environmental factors such as ice and low water can make it difficult or impossible for tankers to dock in the usual manner. Our Near-Shore Tanker (un-loading) system can accommodate or provide the following:
- Flexible hoses ranging from 50 to 500 meters in length.
- No jetty.
- A tanker moored at sea.
- A lightweight system that can easily be moved and stored away safely when not in operation.

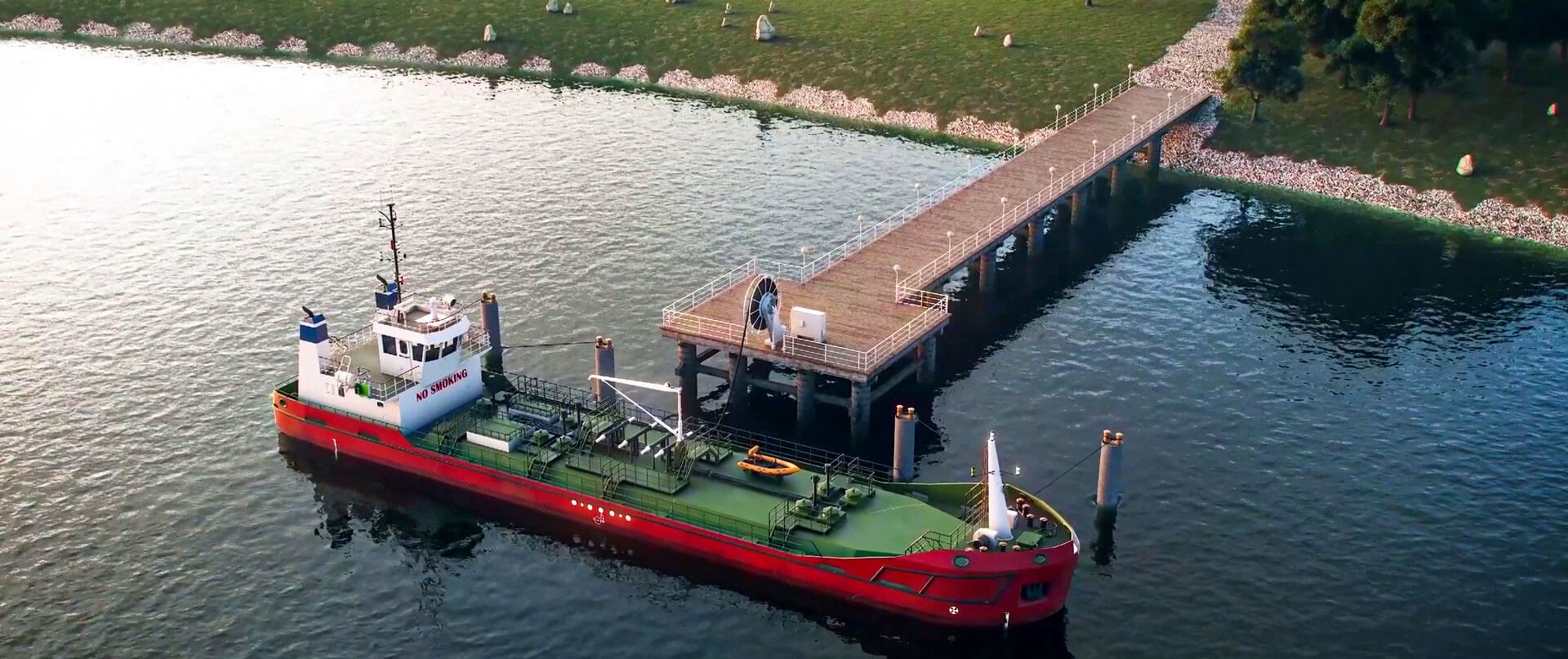

Small Scale River Terminal:
Riverside docking can present many complexities, such as tides that affect the stability of mooring and small jettys that require the use of a small footprint and lightweight systems. DockReel helps companies overcome these challenges with:
- Lightweight and versatile systems.
- Reduced footprint considerations.
- Flexible hose lengths that accommodate the movement of the tanker, allowing for safe marine loading operations.
Multi-Purpose Cargo Dockside:
DockReel is a cost-effective and efficient alternative to conventional marine loading arms. The solution helps eliminate obstructions on busy docksides while facilitating multiple loading and unloading processes. The SafeRack engineering team can design and install custom solutions to suit your operational requirements.
- Flexible hose lengths tailored to your operational requirements.
- No dockside obstructions enabling multiple loading and unloading operations.
- A custom marine loading arm alternative that minimizes your footprint.

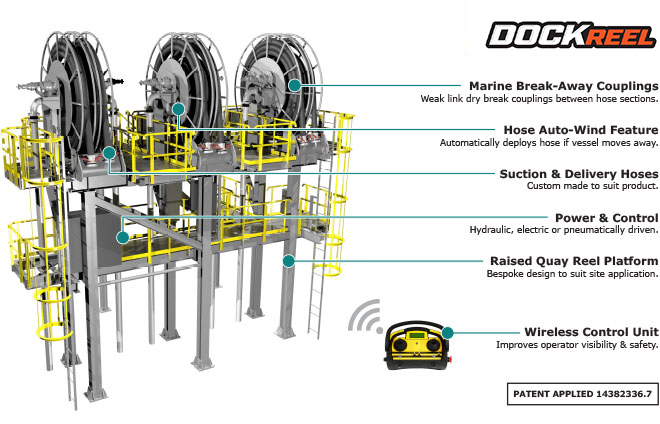

Tanker Loading:
For operations that require a fixed marine tanker loading and/or tanker unloading system, DockReel offers unmatched flexibility and efficiency through features and capabilities such as:
- Flexible hoses.
- Hose auto-wind facility.
- Custom and multi-reel configurations.
- Simultaneous safe product loading.

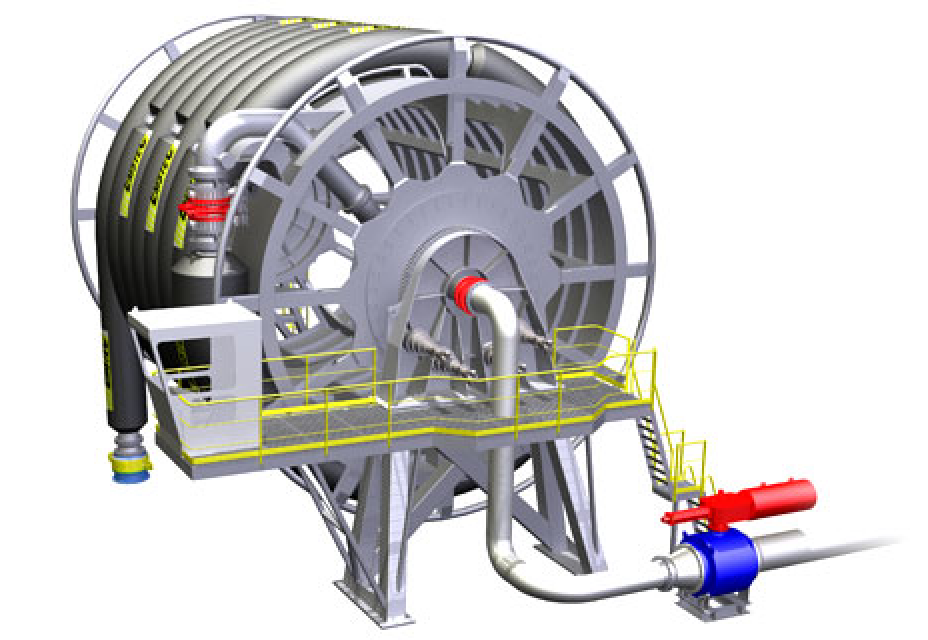

FLUID TRANSFER SYSTEMS:
Provides safe and efficient marine loading and offloading operations in various offshore and onshore applications. These systems typically utilize flexible pipes to transfer crude oil or other media in dynamic applications. The systems include a means for storage, deployment, and recovery of the flexible pipe while incorporating power, control, and utility equipment.
Various onshore and offshore hose reels, chutes, or outboard platform stations are available. They can be specifically configured and designed to suit individual applications and installations worldwide. Tandem mooring, handling, and storage systems complement our best-in-class Fluid Transfer Systems.

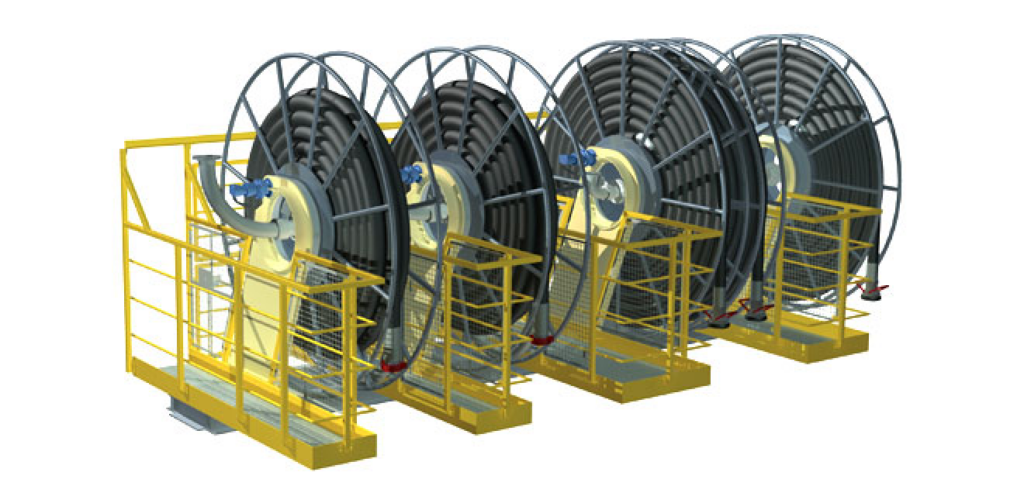

HOSE HANDLING STATIONS
Provides safe operation and storage of bulk loading hoses used for fluid or powder transfer operations. We offer single, double, or multi-reel stations that are specifically configured and designed to suit individual applications and installations worldwide.
Hose assemblies, connectors, and reel pipe work materials are individually selected by our experienced team for compatibility with your project specifications.
The stations are supplied with self-contained hydraulic power and control units. Optional pneumatic or electric drive and control systems are available.

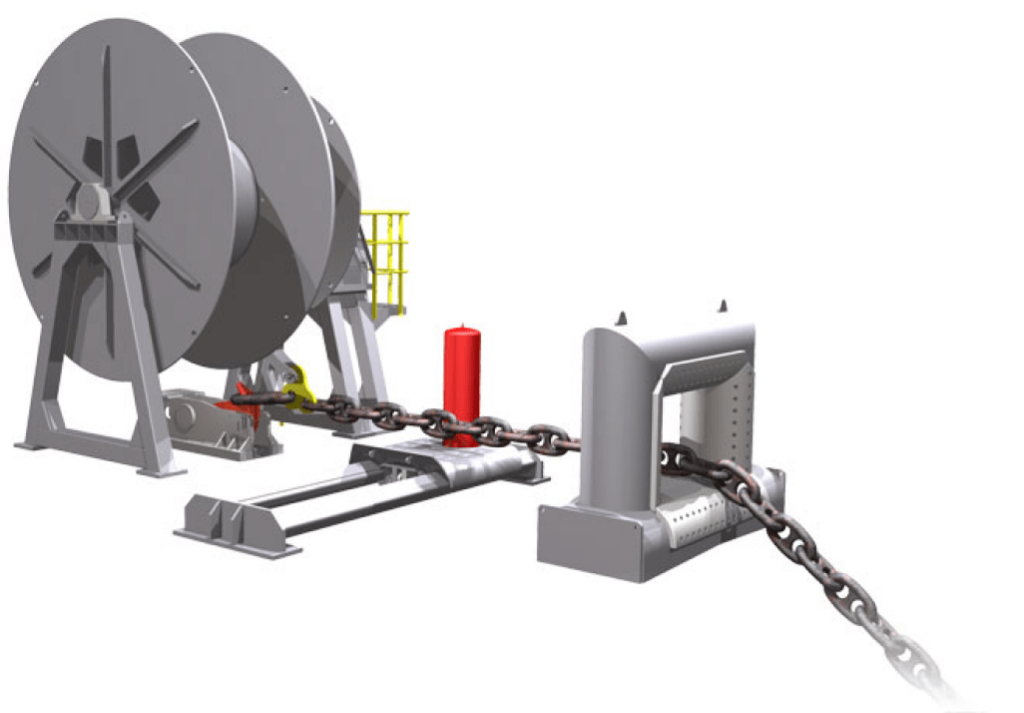

TANDEM MOORING SYSTEMS
Provides safe and efficient tandem mooring operations between FPSO and Shuttle Tankers. The systems offer a means for storage, deployment, and recovery of the Mooring Hawser/Chafe Chain/Messenger Line Assembly and Integrated Mooring Point, with a full load quick release facility. In addition, hydraulic power/control utility and load monitoring/data logging equipment can be incorporated.
Our Tandem Mooring Systems complement our range of Fluid Transfer Systems utilizing common power sources and control arrangements.
